Photos from our installations

Access control, cameras and the installation behind them. These are photographs from our own jobs, with the details left visible so you can see how we work.

Request a quote
HID long-range UHF vehicle gate reader mounted on a high-visibility orange pedestal between steel bollards at a fenced logistics yard in Vaughan, ON.
HID long-range vehicle reader on a pedestal at a fenced logistics yard — Vaughan, ON.Reader pedestal protected by steel bollards.

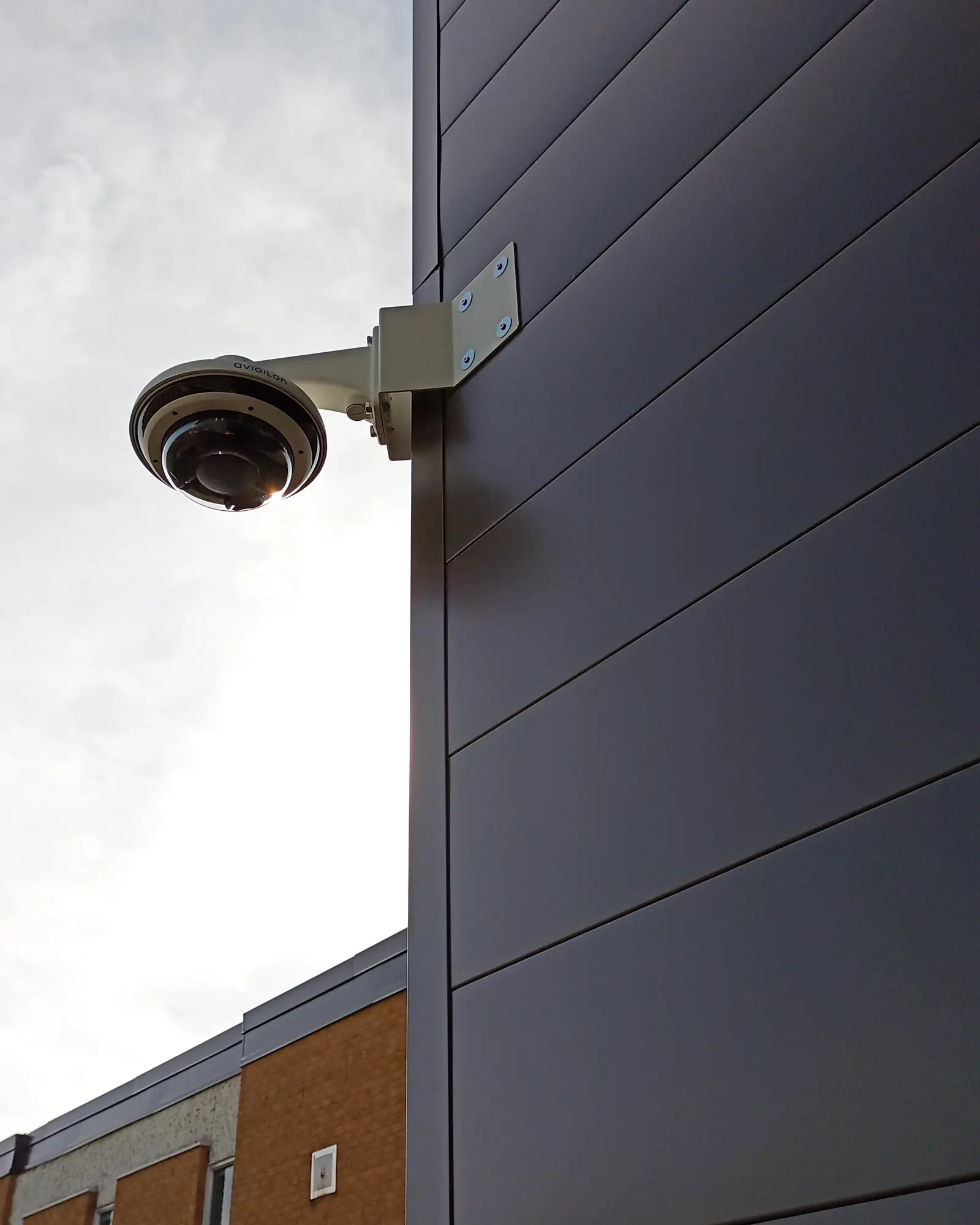

Avigilon multi-sensor panoramic security camera on a heavy-duty wall arm against corrugated dark metal cladding at a 150,000 sq ft warehouse in Vaughan, ON.
Avigilon multi-sensor camera installed on a 150,000 sq ft warehouse exterior — Vaughan, ON.Panoramic camera supported on a dedicated wall arm.
ICT Protege GX door controller in a black commercial enclosure with reader and strike wiring routed on tie mounts in Toronto, ON.
ICT Protege door controller, wiring routed on tie mounts — Toronto, ON.Reader and strike wiring routed on tie mounts.
Bank of parallel EMT conduits with matched offsets running down a concrete telecom room wall into Mercury and ICT enclosures in Vaughan, ON.
Parallel EMT conduit bank with matched offsets into security enclosures — Vaughan, ON.Parallel EMT runs with matched offsets into the enclosures.

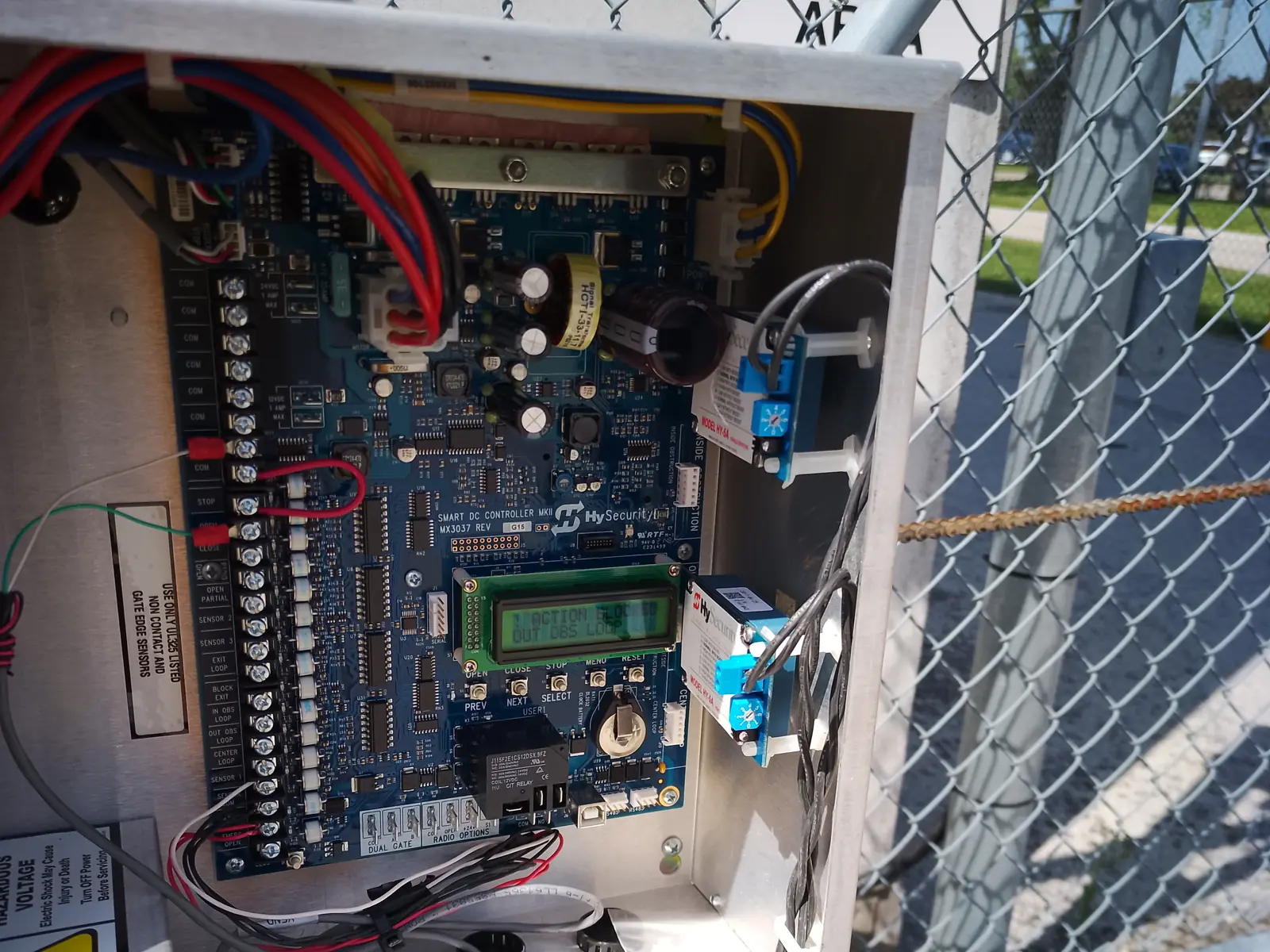

Open control cabinet of a commercial sliding gate operator wired with loop detector relays and access control dry contacts in Caledon, ON.
Commercial sliding gate operator control and relay wiring — Caledon, ON.Loop detector relays and access-control dry contacts inside the operator cabinet.

Control panels and equipment racks

Controllers, power supplies, batteries and rack equipment, mounted, wired by function and labelled.

Access controlIntrusion alarms

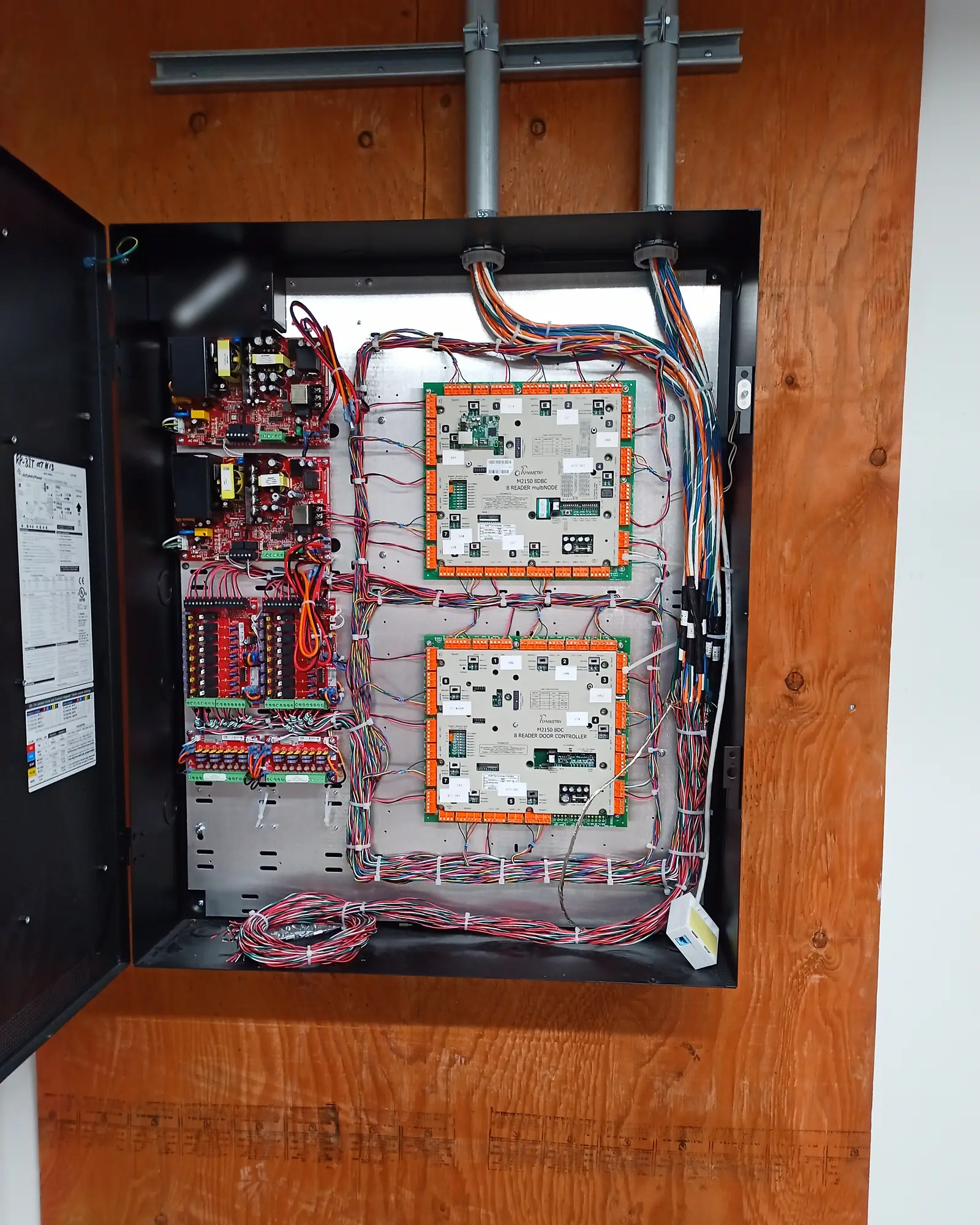

Open access control enclosure with Mercury door controller, Altronix power supplies, output boards and dual backup batteries installed for a commercial warehouse in Vaughan, ON.
Mercury door controller, power supplies and battery backup in one enclosure — Vaughan, ON.
Two ICT Protege door controllers in a finger-duct enclosure with printed cable labels at every reader and lock termination for a multi-tenant office building in Mississauga, ON.
ICT Protege controllers in wire duct, every door's wiring labelled — Mississauga, ON.

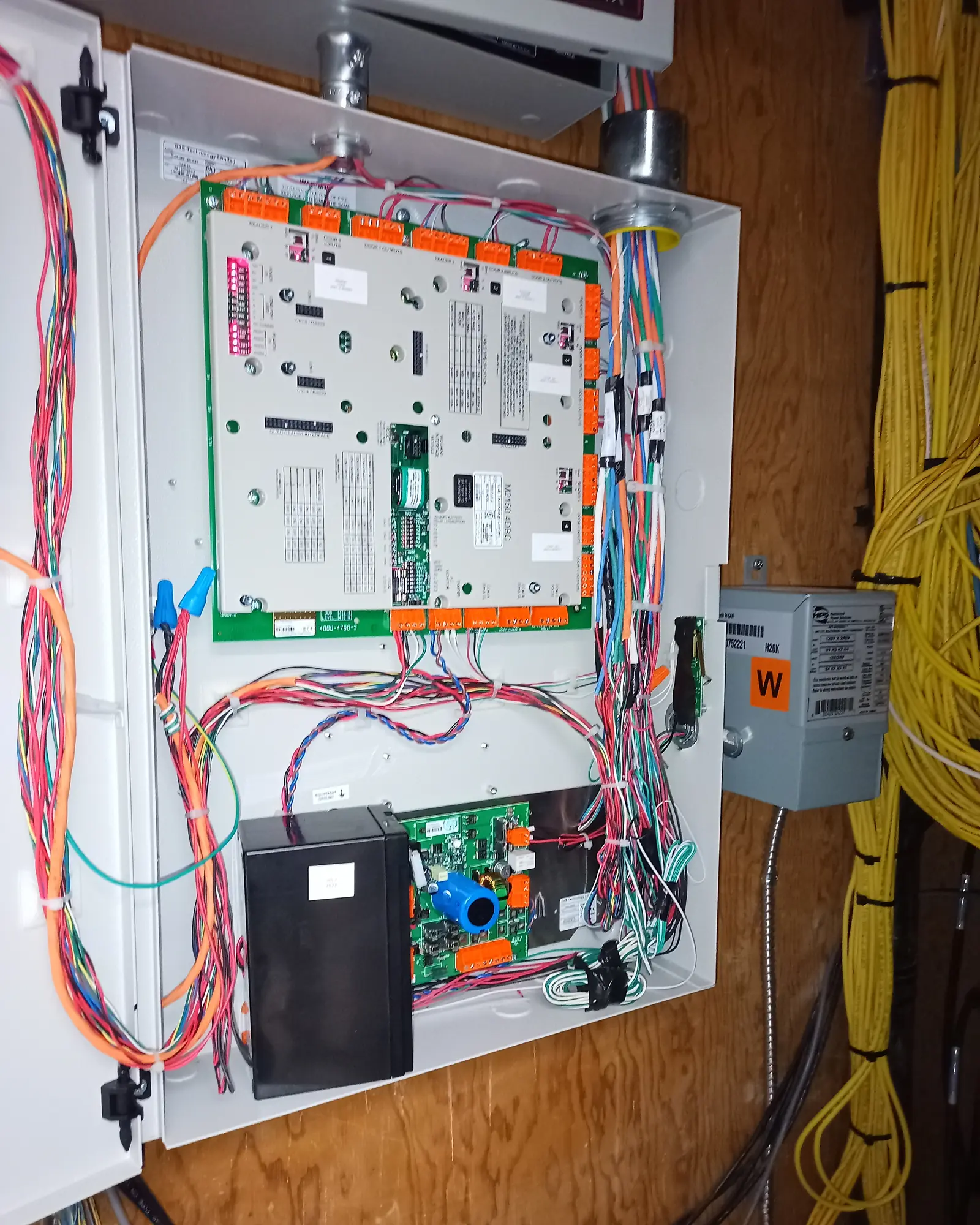

Commercial door controller in a steel enclosure with field wiring bundled and dressed for an industrial facility in Brampton, ON.
Access control panel with field wiring dressed down one side — Brampton, ON.
Dual Mercury access control panels and power distribution enclosure on a telecom backboard fed by EMT conduit at a 150,000 sq ft logistics warehouse in Vaughan, ON.
Dual Mercury controllers and power distribution fed by EMT conduit — 150,000 sq ft Vaughan warehouse.
Close-up of shielded access control and intrusion conductors landed on ICT Protege DIN-rail terminal blocks in Markham, ON.
Conductors terminated on an ICT Protege controller module — Markham, ON.
Close view of a Mercury MR52 sub-controller board with twisted-pair reader and door contact cables dressed along its edge in Mississauga, ON.
Twisted pairs dressed along a Mercury controller board — Mississauga, ON.
Lock power supply above a fused multi-output distribution board for electric strikes and maglocks in Etobicoke, ON.
Lock power supply and fused outputs for electric door hardware — Etobicoke, ON.
Compact security controller in a wall enclosure fed by surface EMT conduit.
Compact security controller in a conduit-fed enclosure — Bolton, ON.
Four Mercury and LenelS2 access controller boards with dual backup batteries in a master telecom enclosure in Mississauga, ON.
Multi-board Mercury & LenelS2 enclosure with dual batteries — Mississauga, ON.

Conduit and pathway

Conduit bent and run on site, from the control equipment out to each device.

Structured cabling
Surface EMT conduit drop running down a painted block wall from a pull box to a DSC Maxsys commercial keypad in Toronto, ON.
Surface EMT conduit drop to a DSC commercial keypad — Toronto, ON.
EMT conduit and junction box above a steel door frame feeding an electric strike, door position switch and REX sensor in Brampton, ON.
EMT conduit to electric lock and REX hardware at a door head — Brampton, ON.
Weatherproof PVC junction boxes and liquid-tight flexible conduit transitioning underground yard fibre and gate power at a fence line in Bolton, ON.
Weatherproof NEMA junction boxes and liquid-tight conduit at a yard fence line — Bolton, ON.

Doors and readers

Readers, keypads, intercoms and the hardware on the door itself.

Access controlIntercom & entry
HID keypad card reader and accessible automatic door operator push button mounted beside a glazed commercial office entrance in Toronto, ON.
HID keypad reader and accessible push button at a commercial office entrance — Toronto, ON.
LenelS2 keypad card reader installed on a wall beside a hollow-metal commercial door frame at an industrial facility in Mississauga, ON.
LenelS2 keypad and card reader at a commercial steel door — Mississauga, ON.
Bosch request-to-exit motion sensor, electric strike lock and armored flex conduit on a high-security pharmaceutical warehouse cage door in Vaughan, ON.
Electric locking hardware, REX sensor and conduit on a warehouse security cage — Vaughan, ON.
Aiphone IP video intercom station mounted on a vestibule wall above an accessible door button and HID card reader in North York, ON.
Aiphone vestibule video intercom, HID reader and accessible push button — North York, ON.
LenelS2 weatherproof PIN and smart-card keypad reader with heavy-duty electric strike at a commercial warehouse doorway in Brampton, ON.
LenelS2 keypad reader and heavy-duty electric strike at a commercial warehouse doorway — Brampton, ON.
HID smart-card reader installed beside a barrier-free accessible door operator push button at a commercial facility in Oakville, ON.
HID card reader integrated with an accessible door operator button — Oakville, ON.
DSC PowerSeries commercial alarm keypad and HID card reader wired in surface EMT conduit beside a warehouse exit door in Mississauga, ON.
DSC alarm keypad and HID card reader wired in EMT conduit beside a warehouse door — Mississauga, ON.

Cameras and sensors

Cameras mounted and aimed inside and out, and the detectors that go with them.

Video surveillanceIntrusion alarms
Axis indoor dome camera mounted in a finished ceiling beside recessed lighting in an office lobby.
Ceiling-mounted Axis dome camera in a commercial office lobby — Markham, ON.
Two Axis & Avigilon outdoor vandal-resistant dome cameras mounted on a commercial brick facade covering the parking lot and entry in Mississauga, ON.
Exterior vandal-dome cameras on a commercial brick facade — Mississauga, ON.
Axis exterior multi-directional camera on a pendant gooseneck mount at the roofline corner of a commercial plaza in Burlington, ON.
Axis exterior camera on a pendant corner mount — Burlington, ON.
Avigilon 270-degree multi-sensor camera mounted under a glazed automotive dealership canopy in Toronto, ON.
Avigilon multi-sensor camera at a dealership building corner — Toronto, ON.

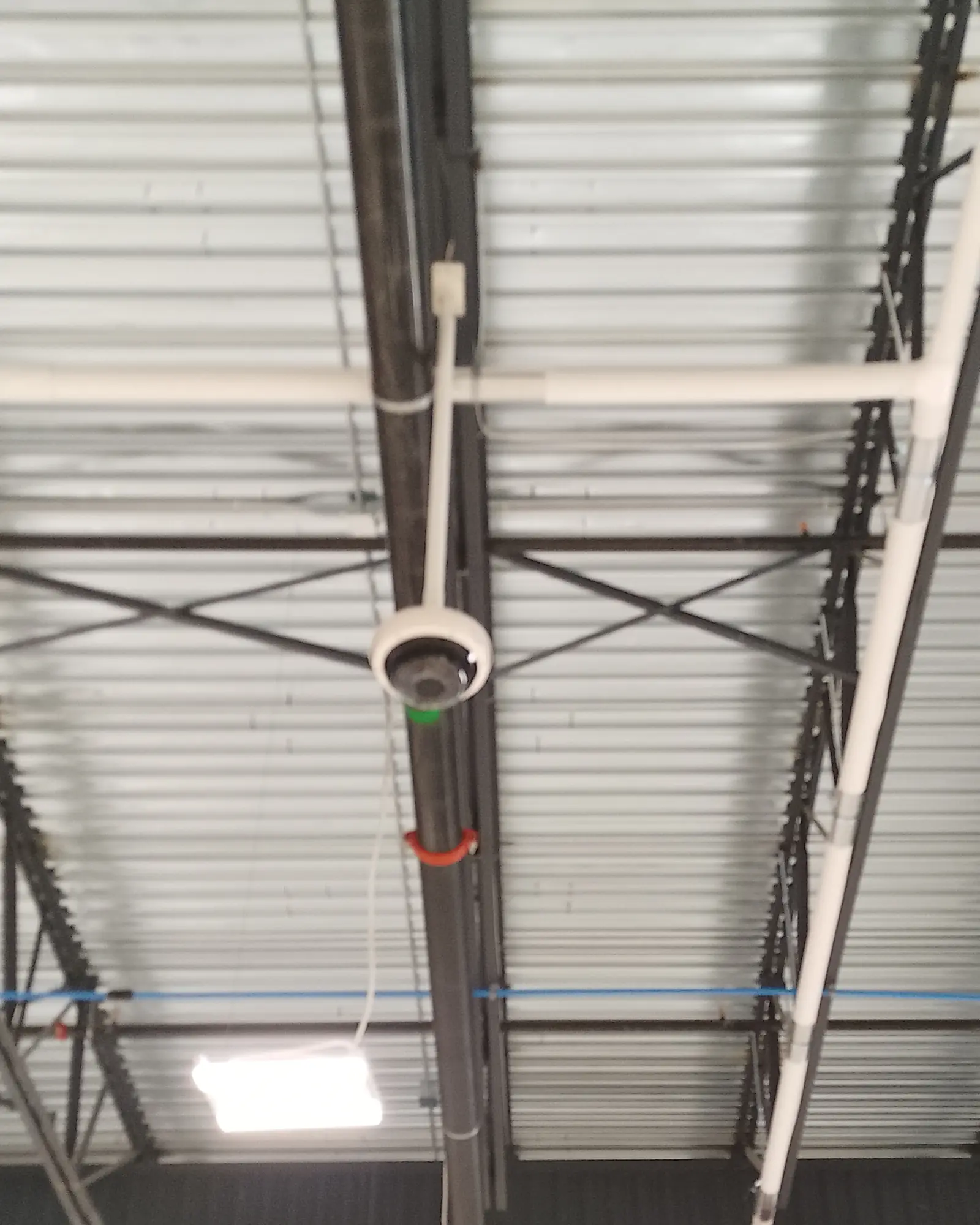

Axis high-bay dome camera suspended on a rigid EMT conduit drop from warehouse roof trusses at a distribution facility in Bolton, ON.
Axis dome camera on a roof-truss conduit drop in a high-bay warehouse — Bolton, ON.
Hanwha Vision Wisenet indoor dome camera installed at the ceiling line of a commercial office corridor in Richmond Hill, ON.
Hanwha Vision interior dome camera at a commercial corridor — Richmond Hill, ON.
Avigilon dome camera on a block wall corner, fed by surface EMT conduit, in an underground garage.
Avigilon dome camera fed by surface EMT conduit — Etobicoke, ON.
Dual-technology (PIR and microwave) motion detector mounted high in the corner of a warehouse bay.
Dual-tech commercial motion detector in a warehouse bay — Brampton, ON.

Gates and yards

Readers, intercoms, cameras and operator wiring at vehicle and pedestrian gates.

Gates & vehicle access
Dual-height gooseneck pedestal at a truck gate entrance with Aiphone IP video intercom stations at car and tractor-trailer height in Mississauga, ON.
Dual-height truck & car gate pedestal with Aiphone video intercom stations — Mississauga, ON.

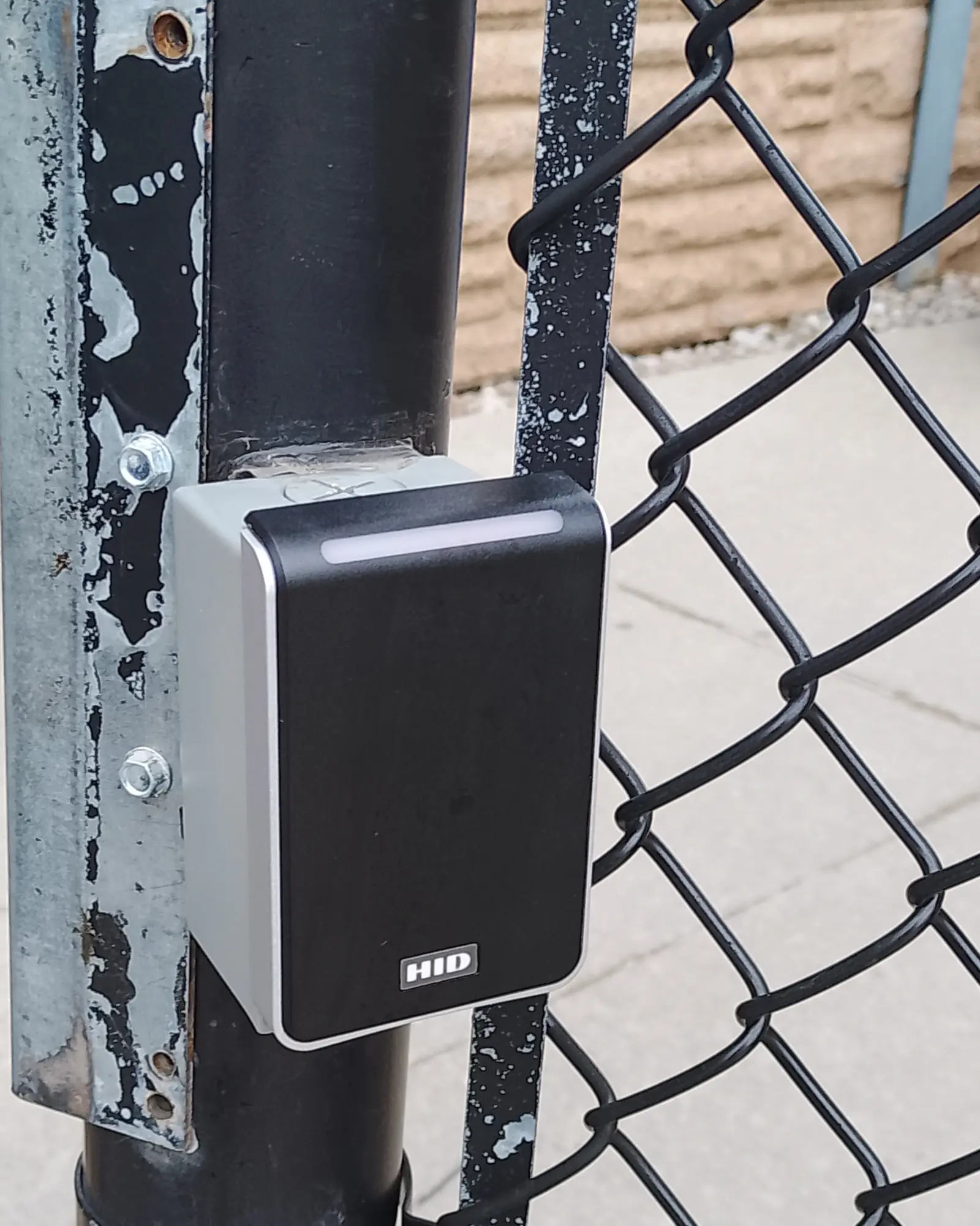

Weatherproof HID Signo smart-card reader mounted on the steel post of a chain-link yard gate in Brampton, ON.
HID Signo weatherproof card reader on a chain-link gate post — Brampton, ON.
Axis license plate recognition (LPR) and vehicle lane camera mounted on a custom steel arm bolted to a yellow bollard at a 150,000 sq ft Vaughan, ON warehouse.
Axis license plate reader (LPR) camera on a bollard arm at a 150,000 sq ft Vaughan warehouse.
